Factory wholesale LED Display China - JR Series -Indoor Outdoor High-Density Mobile Rental Led Display Qingan
Factory wholesale LED Display China - JR Series -Indoor Outdoor High-Density Mobile Rental Led Display Qingan Detail:
Product Feature
Minimalist modular design
Module embedded design
Modular design of control unit
Lightweight case design
Quadruple protection design
Product description
German iF design award
Germany Red Dot Award
China Contemporary Good Design Award
Gold Award of Qingdao Mayor’s Cup Industrial Design Competition
Silver Award of Qingdao Mayor’s Cup Industrial Design Competition
2019 China Top 10 LED Rental Screen Most Growing Brand
2021 China’s Top 10 LED Dance and Rental Screen Brands
Product details
Minimalist design: exclude the failure rate from the design perspective, only for more stable products.

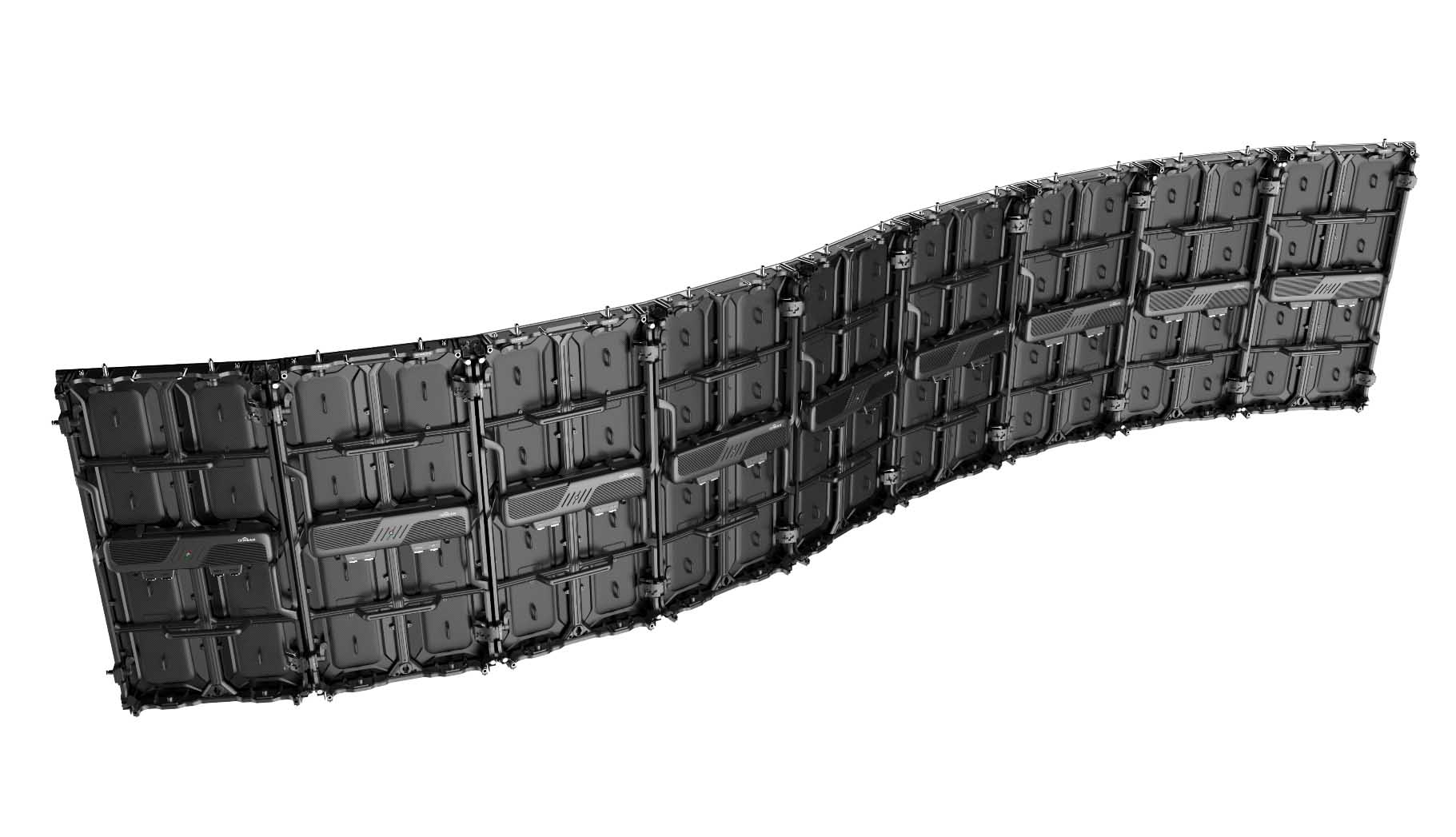

Highly integrated for modular design, making it easy to install, saving manpower, improve work efficiency, Can be a flat screen or a curved screen of ±5° and ±10°,so can be built in many creative shapes according to the scene atmosphere in large performances, events, music festivals and other rental activities.

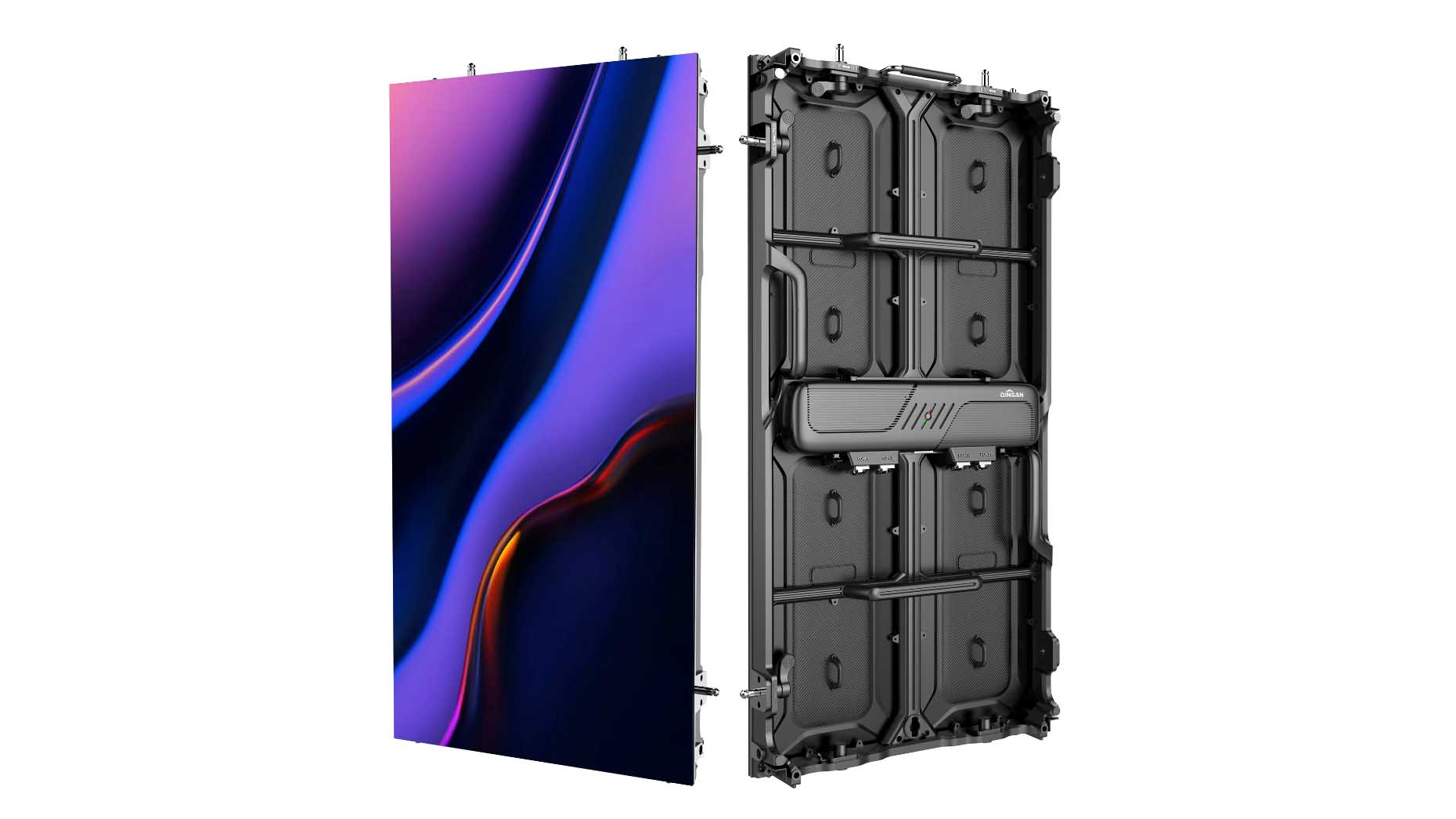

Modular Design & Easy Maintenance Full front and rear maintenance,suited for maintenance in different circumstances.
Quadruple anti-collision design, effective protection to extend the use of lease life.

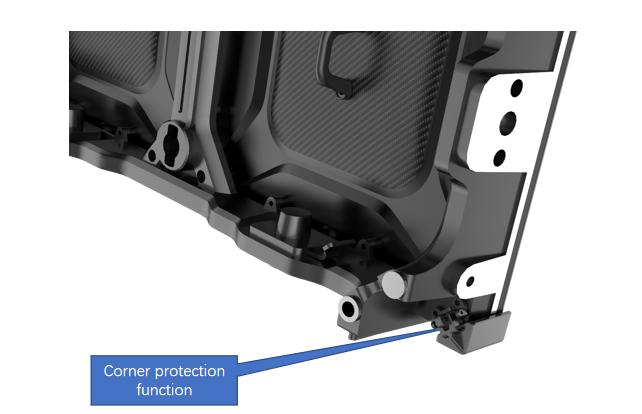

The corner protection function plays an effective role in protecting the high-precision small pitch screen.
Module embedded design

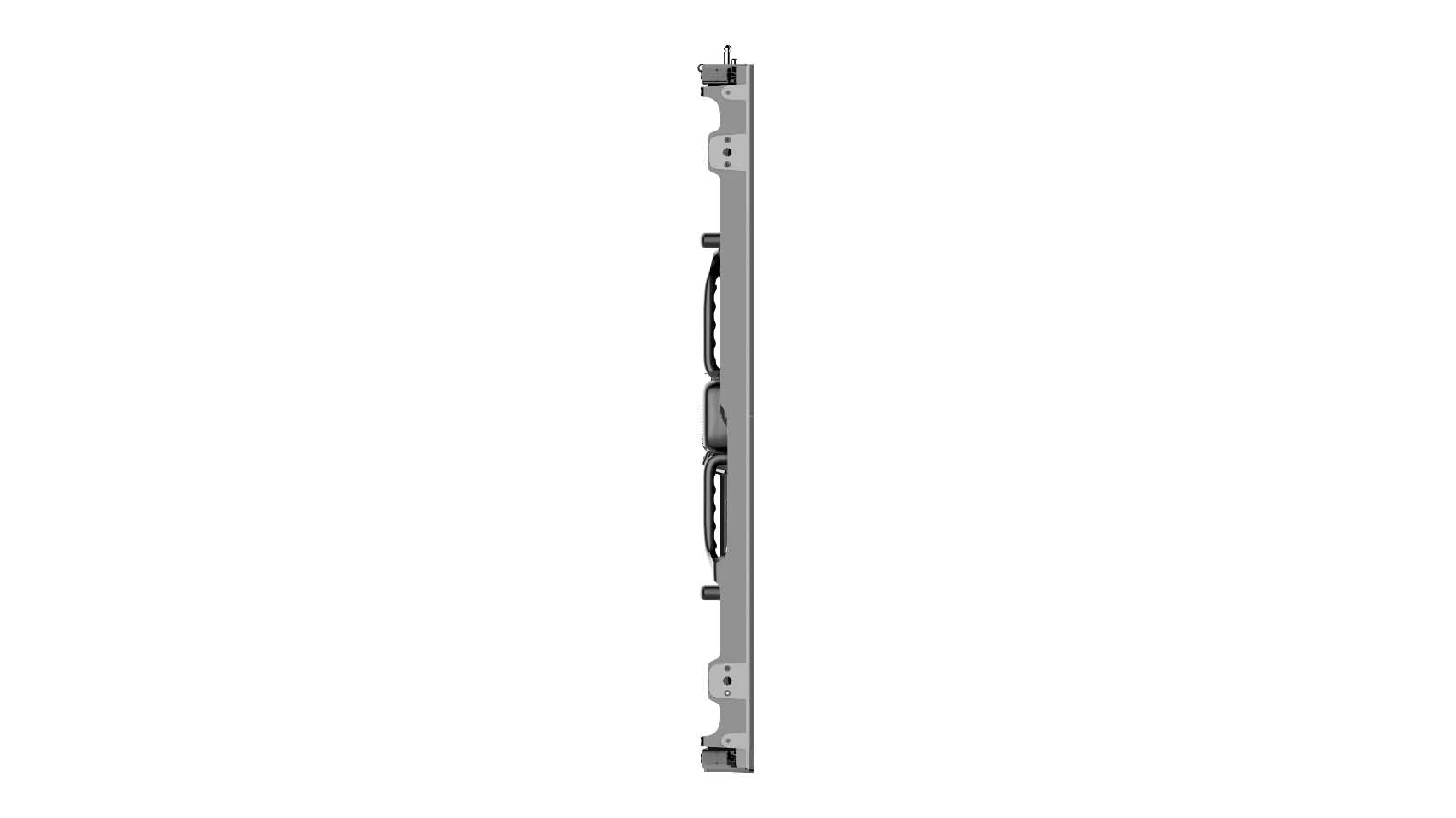

Lightweight design for one-man installation and dismantling,save time and labor cost.
The ultimate lightweight, the whole cabinet is lighter and thinner, only under 11kg for 500*1000mm cabinet’s weight .

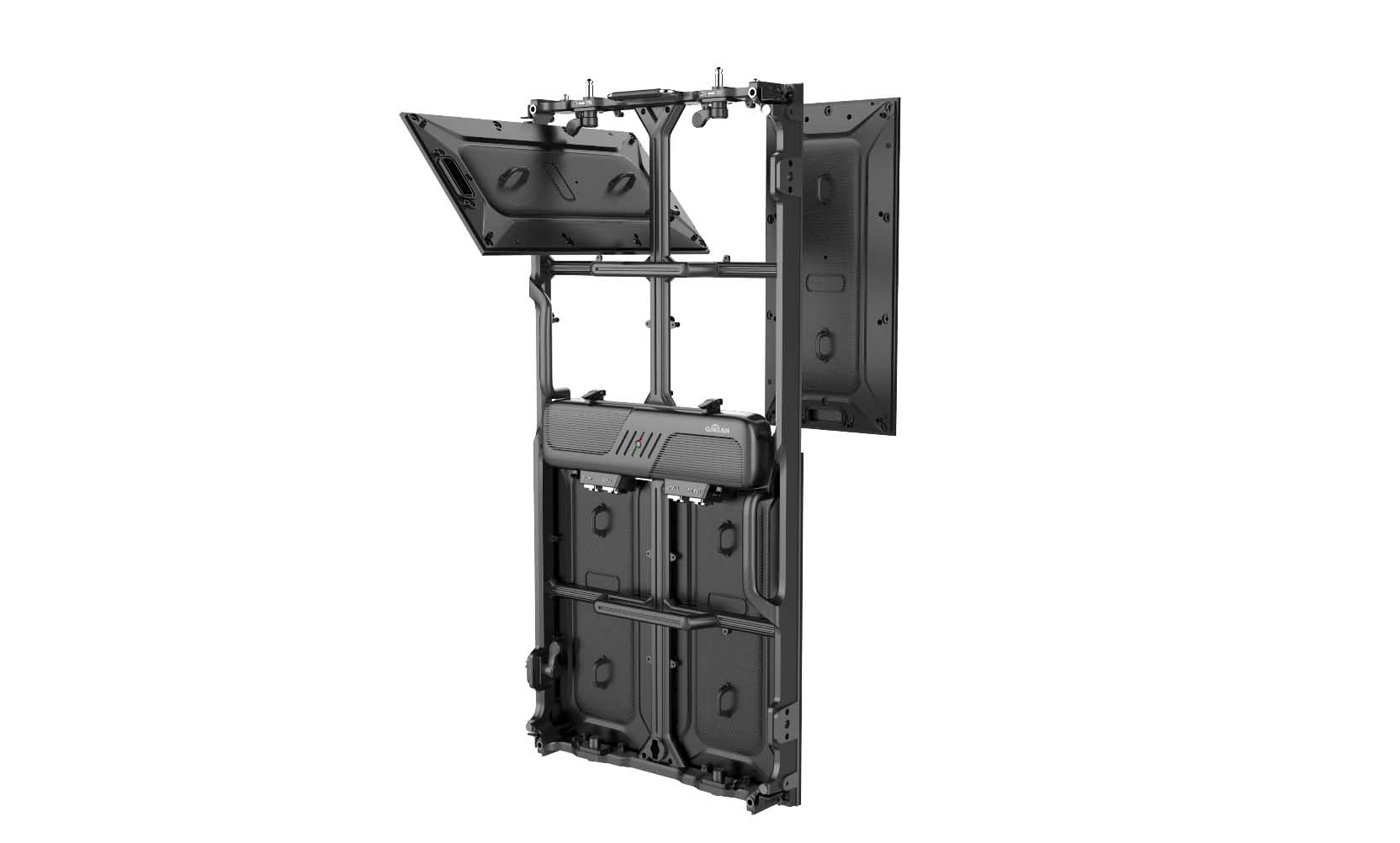

Control display separation module design, effective and rapid troubleshooting rate.
One-touch test, small card design for control system: One-touch test function work site to quickly detect screen failure. Small card design control bin more concise, more stable.

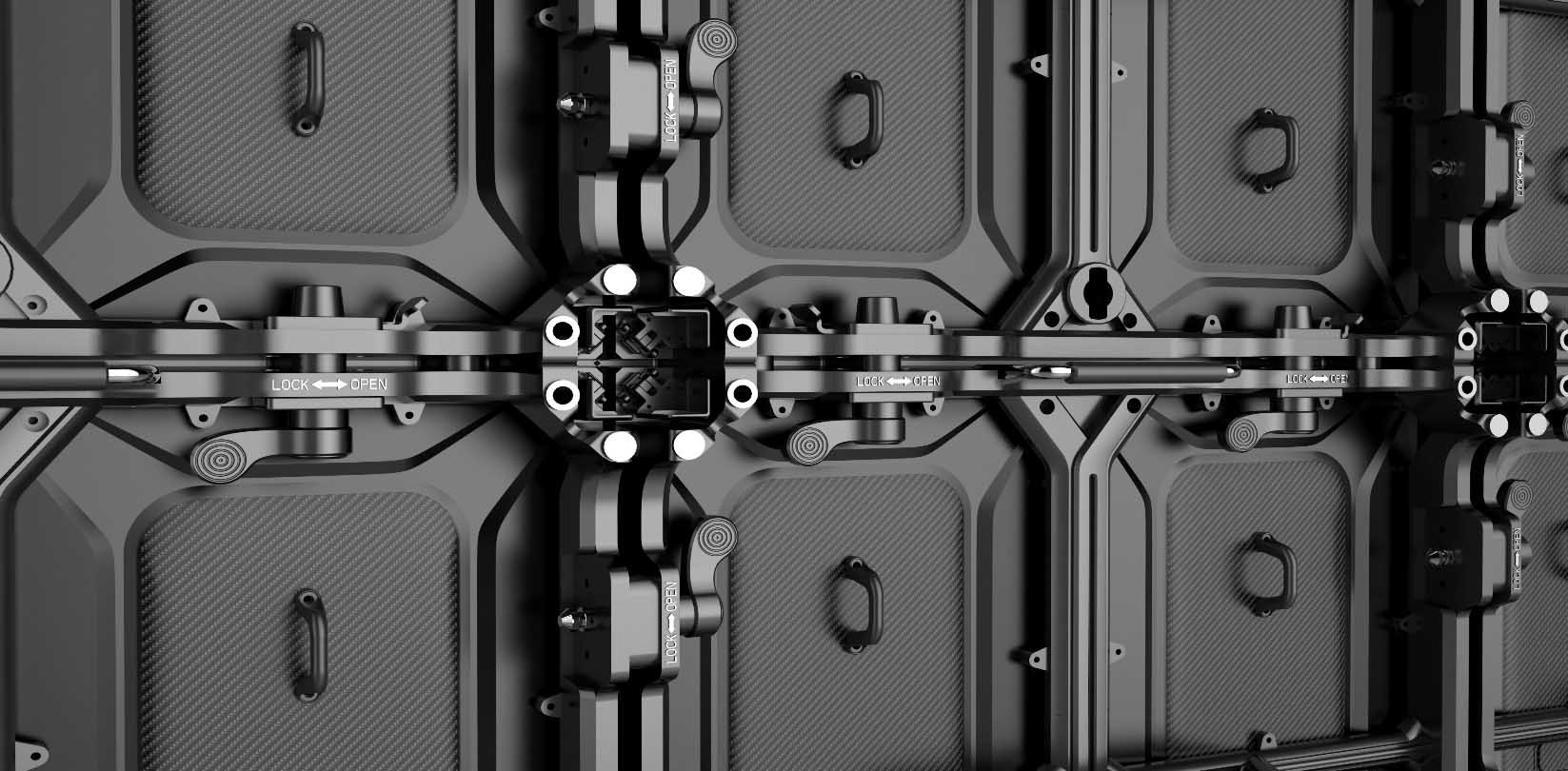

Optional curved lock, free inside and outside curvature build.
Stacking and hanging system available
High refresh configuration of 3840HZ, creating high-definition images, regardless of cell phones, cameras shooting, no longer water ripples, moiré.

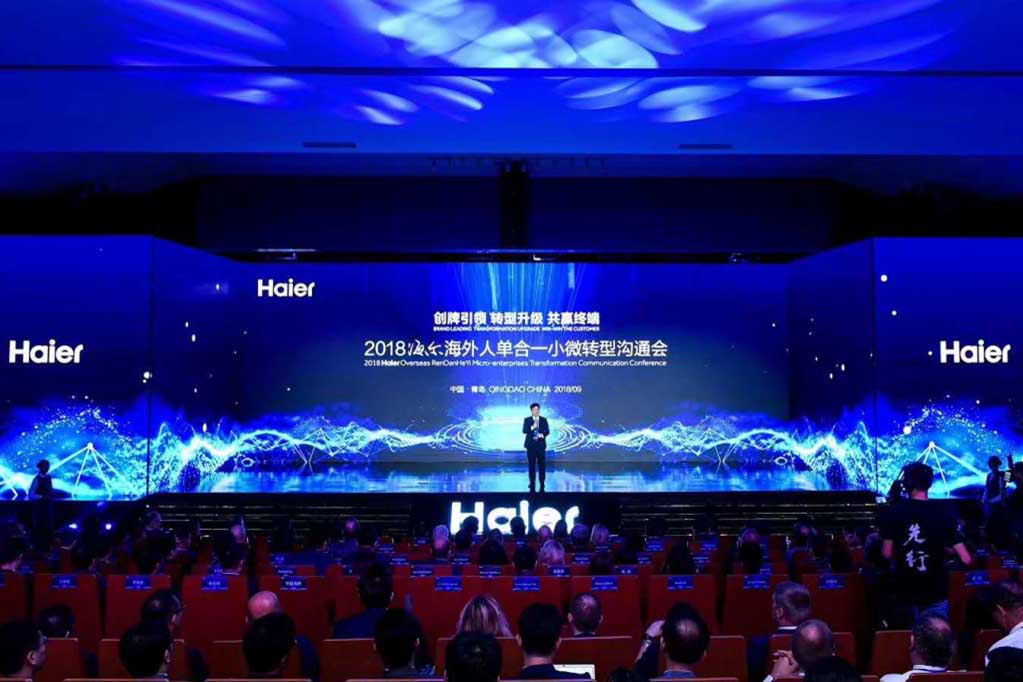

Application
Technical Parameter
| JR-series Technical parameter | |||||
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 3.91mm(Outdoor) | 4.81mm(Outdoor) |
| LED | SMD1515(Black) | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Pixel Density | 147456Pixel㎡ | 112896Pixel㎡ | 65536Pixel㎡ | 65536Pixel㎡ | 43264Pixel㎡ |
| Brightness | 800-1200nits | 4000-4500nits | 3500-4000nits | ||
| Color Temperature | 6500-9500k | ||||
| Scan | 1/32 | 1/21 | 1/16 | 1/16 | 1/13 |
| Panel Dimension(W*H*D) | 500mm*500mm*75mm / 500mm*1000mm*75mm | ||||
| Panel Resolution | 192*192Pixel/ 192*384Pixel | 168*168ixel/ 168*336Pixel | 128*128Pixel/ 128*256Pixel | 128*128Pixel/ 128*256Pixel | 104*104Pixel/ 104*208Pixel |
| Panel Weight | 5.4kg /11kg | 5.8kg/11.4kg | |||
| Cabinet Material | Aluminum | ||||
| Max Power Consumption | ≤650w㎡ | ≤800w㎡ | |||
| Average Power Consumption | ≤325w㎡ | ≤400w㎡ | |||
| Viewing Angle | H:160° V:160° | H:160° V:160° | |||
| Refresh Aate | 3840Hz | ||||
| Gray Scale | 14-16bit | ||||
| IP Rating | IP30 | IP65 | |||
| Operating humidity | 10%-60%RH | 10%-90%RH | |||
| Operating temperature | -20℃～+45℃ | ||||
| Max.Stacking | 12m | ||||
| Max.Hanging | 12m | ||||
| Curve(Optional) | -10°～+10° | ||||
| Lifetime | 50,000(H) | ||||
| Storage Temp/Humidity | -40℃～+60℃;10%-60%RH | ||||
Product detail pictures:
