E Series-500 -Rugged High-Resolution Performance Rental LED Display
Product details

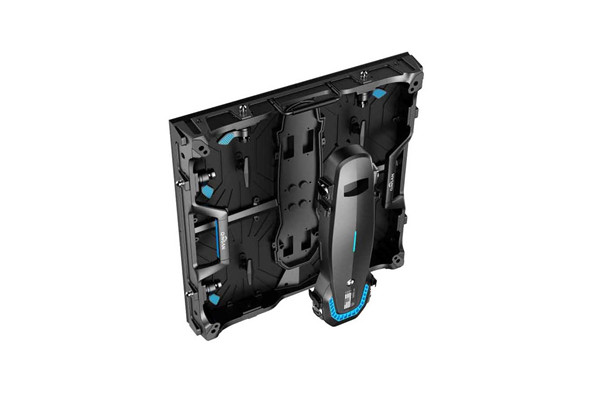

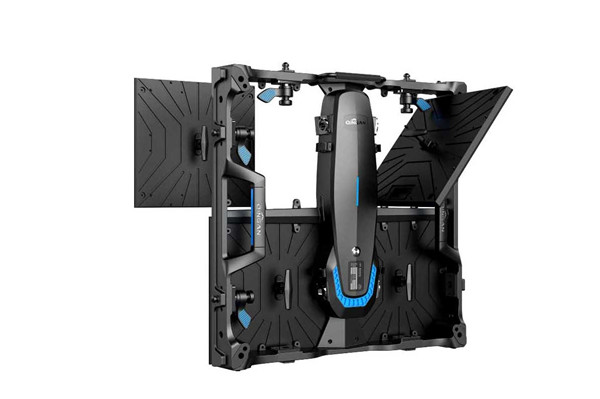

Control and display part separation: the control compartment and display cabinet can be quickly disassembled and replaced, and the power supply and control card in the control compartment do not need to worry even if a failure occurs.
The cabinet is designed to be strong and sturdy and can be used as a floor display.
Multiple anti-collision: multiple anti-collision designs protects the screen from damage and extend its life of the screen.

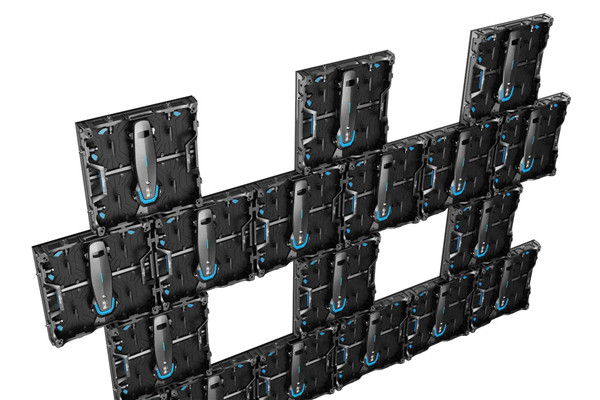

Creative set: unlimited creativity, arbitrary building, brilliant colors.

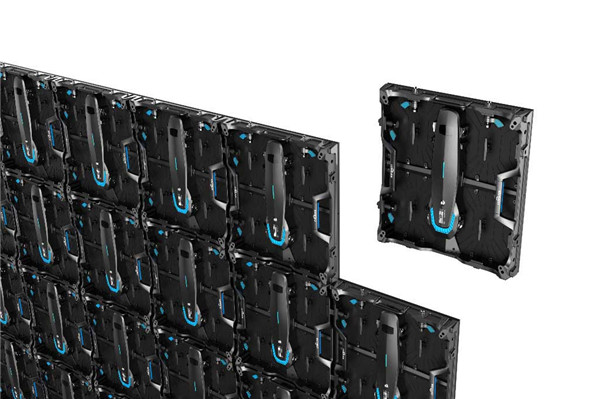

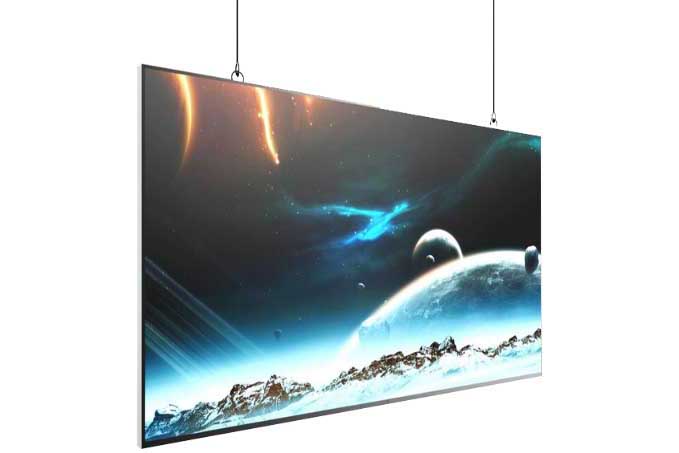

Installation mode: support lifting, support stack building.
Gold plating process: all the connectors are gold plated process, long-term use to eliminate oxidation, increase stability

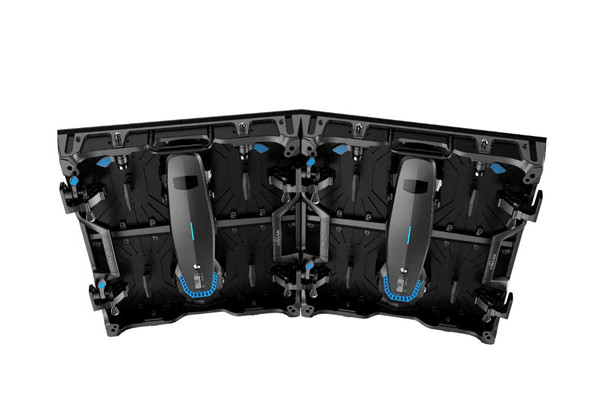

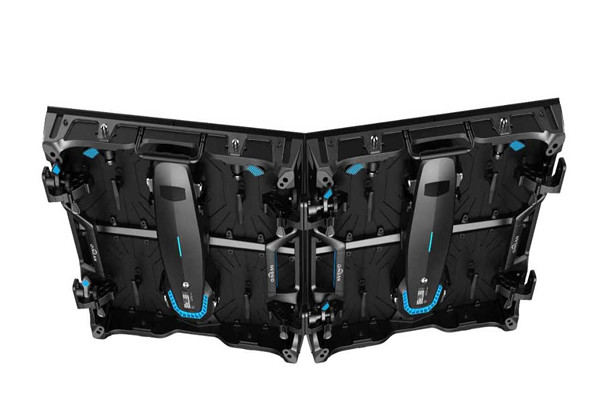

Arc lock: optional arc lock is available to support building inner arc screen and outer arc screen to present creative effects.

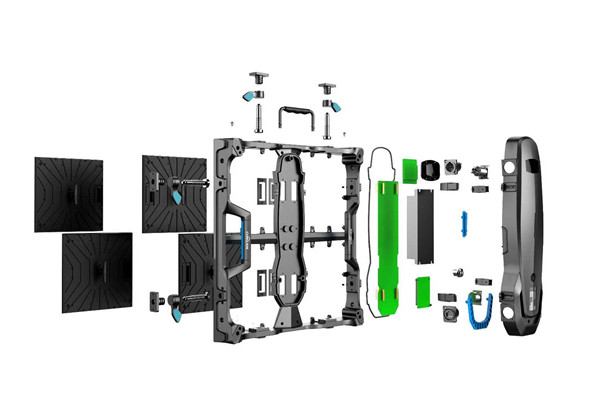

Private mould patent design: from the inside to the outside of all the company's designers R & D design, craftsmanship, efficient and stable, positioning high-end.
Installation effect: Qingan specializes in LED display for 15 years, deep understanding of the characteristics of the display, the screen color is pure, high-definition display suitable for all kinds of performances and meeting places.

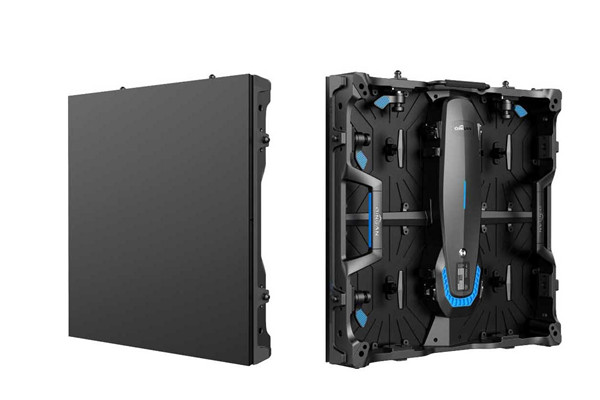

Back
Front
Note:The following picture is the ordinary cell phone shooting photos
High refresh configuration, no water ripple, no moiré
High standard for chip
3840Hz high refresh frequency, making the screen display in high-speed moving objects, screen stability without trailing no frame flash line, to ensure a fine, comfortable viewing experience
Application
Outdoor shooting for solid color effect
Technical parameter
| E-series Small interval series | |||||
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm | 3.91mm(Outdoor) | 4.81mm(Outdoor) |
| LED | SMD2020(Black) | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Pixel Density | 147456Pixel㎡ | 112896Pixel㎡ | 65536Pixel㎡ | 65536Pixel㎡ | 43264Pixel㎡ |
| Brightness | 800-1200nits | 3500-4000nits | 3500-4000nits | ||
| Color Temperature | 6500-9500k | ||||
| Scan | 1/32 | 1/21 | 1/16 | 1/16 | 1/13 |
| Panel Dimension(W*H*D) | 500mm*500mm*75mm | ||||
| Panel Resolution | 192*192Pixel | 168*168Pixel | 128*128Pixel | 128*128Pixel | 104*104Pixel |
| Panel Weight | 7.20kg | 7.60kg | |||
| Cabinet Material | Aluminum | ||||
| Max Power Consumption | ≤650w㎡ | ≤800w㎡ | |||
| Average Power Consumption | ≤325w㎡ | ≤400w㎡ | |||
| Viewing Angle | H:160° V:160° | H:160° V:160° | |||
| Refresh Aate | 3840Hz | ||||
| Gray Scale | 14-16bit | ||||
| IP Rating | IP30 | IP65 | |||
| Operating humidity | 10%-60%RH | 10%-90%RH | |||
| Operating temperature | -20℃～+45℃ | ||||
| Max.Stacking | 12m | ||||
| Max.Hanging | 12m | ||||
| Curve(Optional) | -10°～+10° | ||||
| Lifetime | 50,000（H） | ||||
| Storage Temp/Humidity | -40℃～+60℃；10%-60%RH | ||||
