GY Series-500 -High Refresh Stable Performance Rental LED Screen
Product description
The global outdoor LED display market is primarily driven by the soaring demand for interactive visualization technology for myriad applications including video walls, scoreboards, advertising boards, perimeter boards, and stadium screens. Coupled with this, the demand for customized and dynamic display of content using advanced display technologies that have higher energy efficiency, is a key factor boosting the outdoor LED display market. Technological advancements in video displays have led to the development of high-resolution signboards, which are increasingly being adopted for interactive displays in various events.
The rising number of events such as live concerts, brand promotion activities, and sports events in various developed and developing regions has fuelled the demand for outdoor LED display technology. Furthermore, the adoption of outdoor LED display is stimulated by its ability to provide customized content across diverse applications such as weather updates, match scores, and streaming live news.
Product details

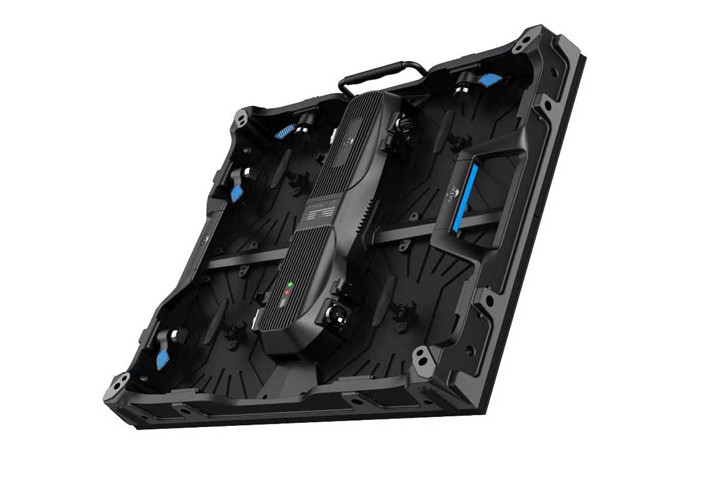

Minimalist design: superior performance, super cost-effective, a great tool for stage performance and fixed installation.

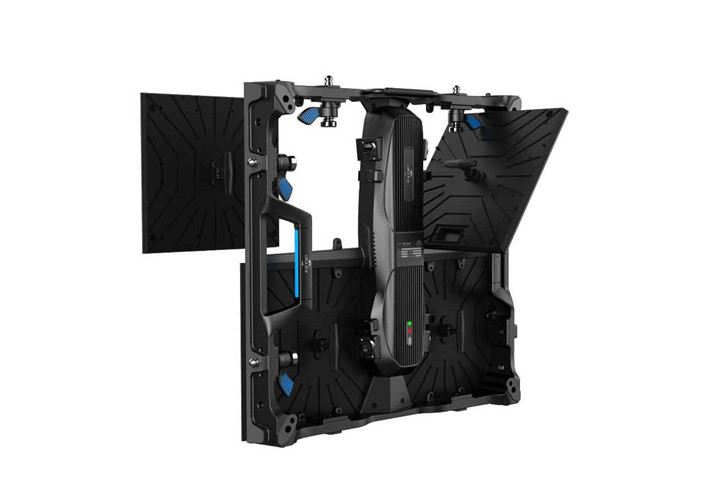

Module maintenance: support module front and back disassembly and maintenance, saving time and effort.

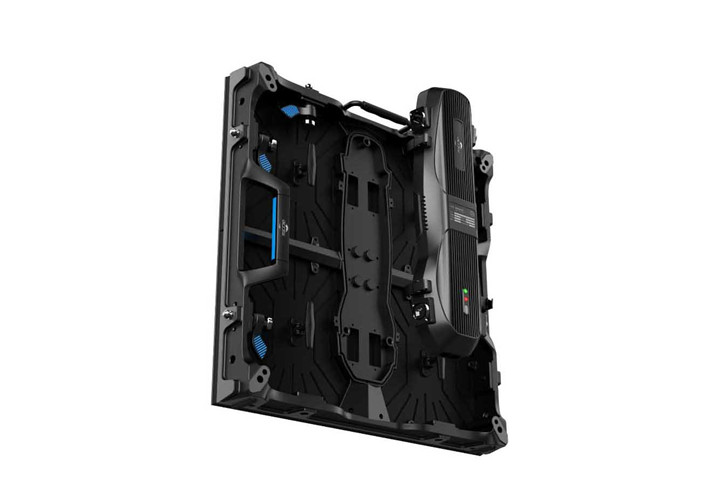

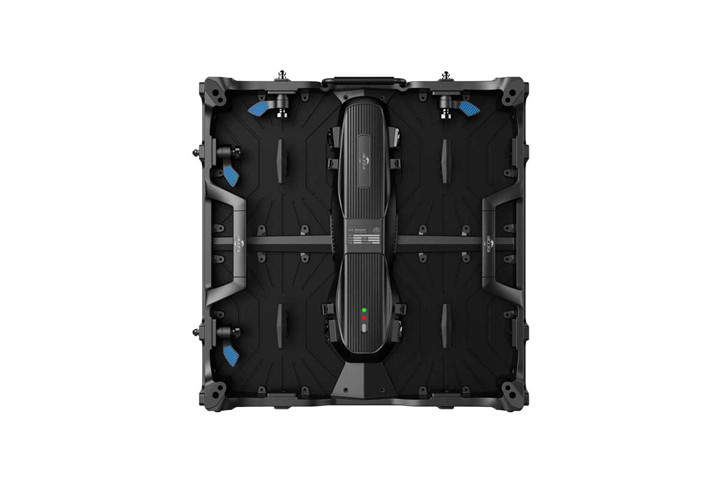

Modular control unit: power supply and control card are concentrated in the control compartment, which can be dismantled and replaced for maintenance by yourself when you encounter a fault, simple and efficient.

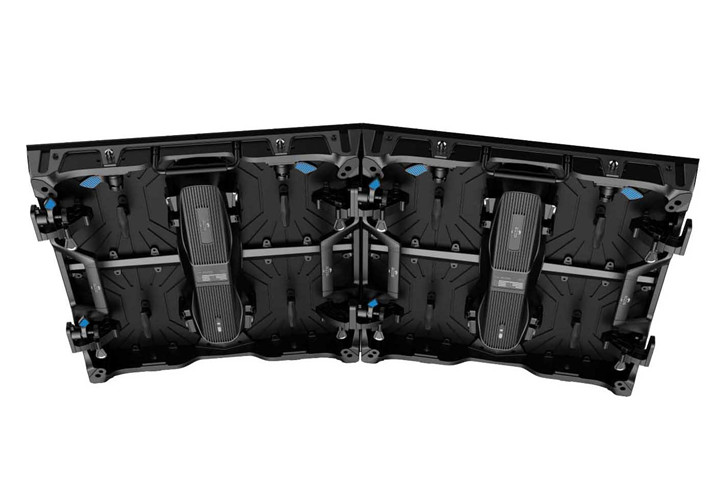

Optional curvature lock: optional curvature lock, creative build all kinds of shaped effects.
Multiple anti-collision design to protect the screen, avoid knocking off the lamp beads and extend the life of the screen

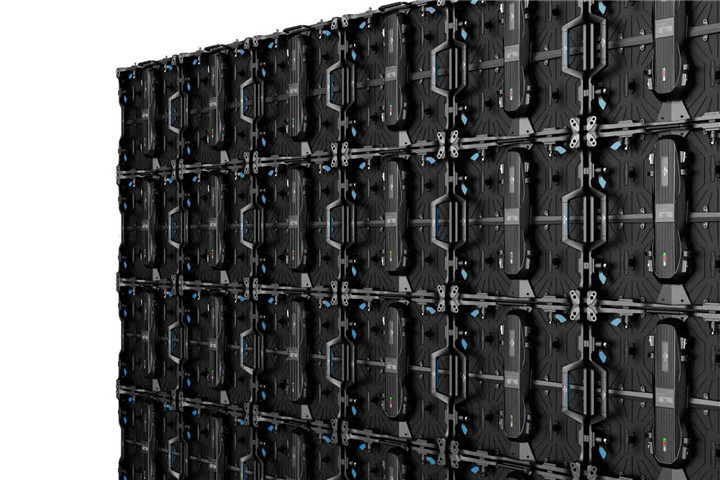

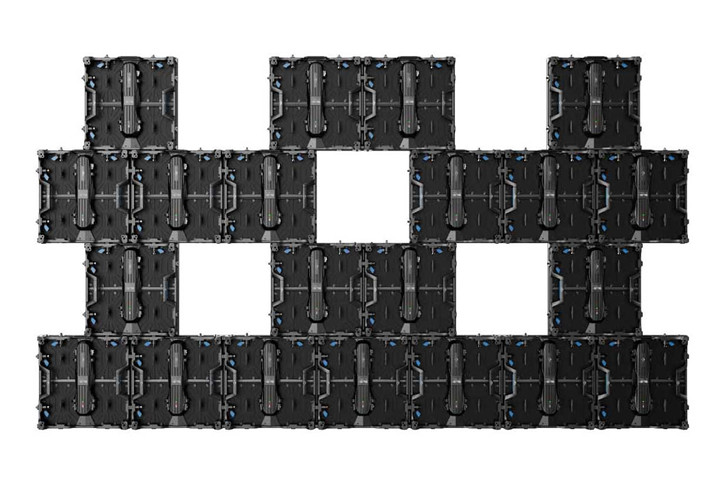

Creative installation effect: can be mixed to build a multi-combination build effect

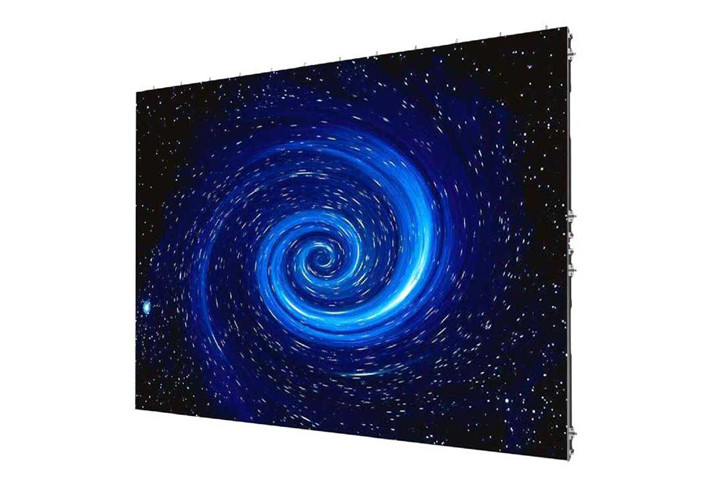

Stable performance: The screen is quick to install, flat and efficient and stable, which is well received by customers worldwide.

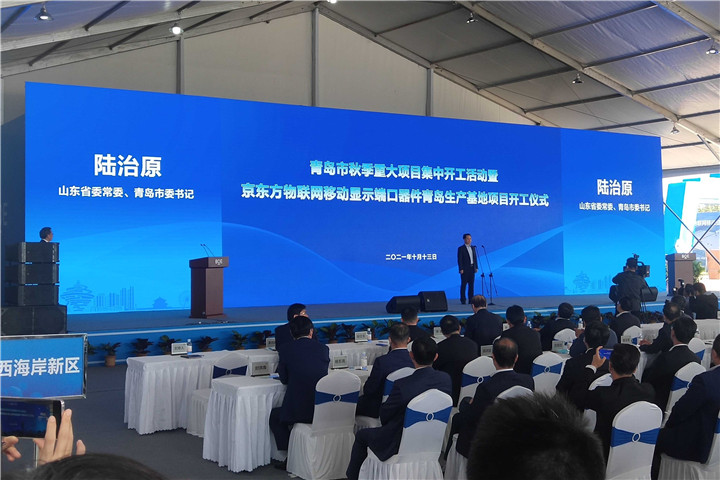

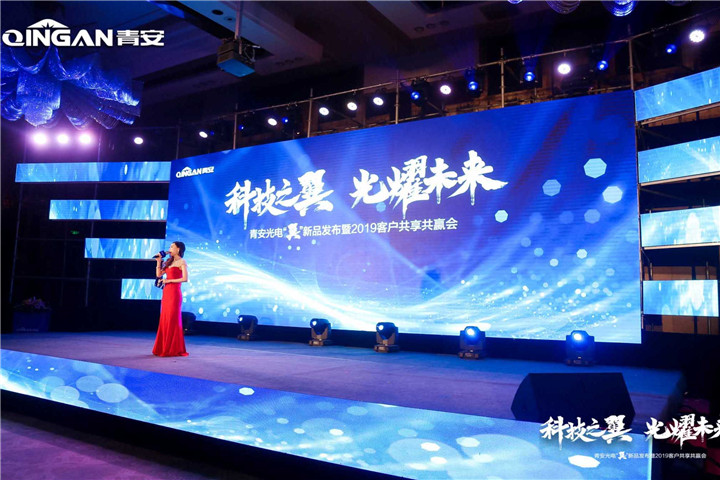

Application
Technical Parameter
| GY-series Small interval series | |||||
| Scan | 1/32 | 1/21 | 1/16 | 1/16 | 1/13 |
| Panel Dimension(W*H*D) | 500mm*500mm*75mm | ||||
| Panel Resolution | 192*192Pixel | 168*168Pixel | 128*128Pixel | 128*128Pixel | 104*104Pixel |
| Panel Weight | 7.20kg | 7.60kg | |||
| Cabinet Material | Aluminum | ||||
| Max Power Consumption | ≤650w㎡ | ≤800w㎡ | |||
| Average Power Consumption | ≤325w㎡ | ≤400w㎡ | |||
| Viewing Angle | H:160° V:160° | H:160° V:160° | |||
| Refresh Aate | 3840Hz | ||||
| Gray Scale | 14-16bit | ||||
| IP Rating | IP30 | IP65 | |||
| Operating humidity | 10%-60%RH | 10%-90%RH | |||
| Operating temperature | -20℃～+45℃ | ||||
| Max.Stacking | 12m | ||||
| Max.Hanging | 12m | ||||
| Curve(Optional) | -10°～+10° | ||||
| Lifetime | 50,000(H) | ||||
| Storage Temp/Humidity | -40℃～+60℃;10%-60%RH | ||||
